SpiroVent Superior

The SpiroVent Superior, a fully automatic vacuum degasser has a fully electronic control system. The Superior offers numerous options, allowing users to achieve optimal energy efficiency, maintain a healthy water heating system, and save on costs.

The benefits of the SpiroVent Superior vacuum degasser

Removes all gases, free air, microbubbles and dissolved gases
Absorptive fluid ensures the removal of trapped gas bubbles
Energy-efficient whilst still achieving the lowest possible gas concentration
Degassed (re)filling and sustained pressure
Warns before (re)filling becomes excessive
An extensive range for a wide variety of systems
Can team up with all common expansion systems
Two-year guarantee

Our vacuum degassers use the principle of Henry's law to degas your system

Want to know more about Henry's law?

The positioning and use of a vacuum degasser in the system

Since a Superior uses depressurization for dissolved gasses removal, the position isn’t that crucial. A vacuum degasser should be used for systems:

with many branches and a low flow velocity or
systems with a small temperature differential, or
where an inline air deaerator cannot be installed, or
where it cannot be predicted where gases are released from the water or
when that point has a very low flow rate.

Our range of vacuum degassers

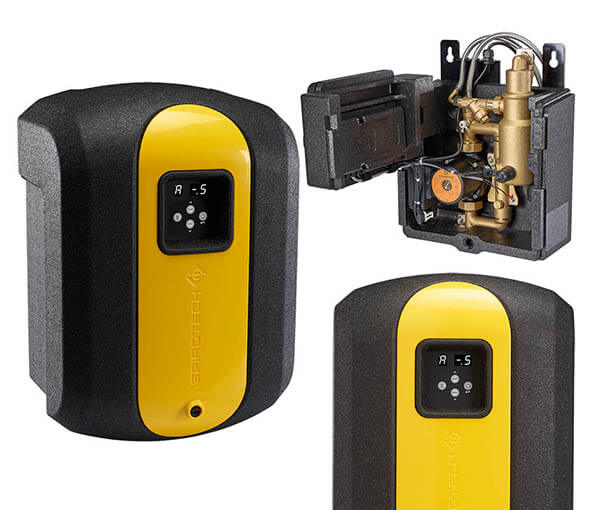

The NEW SpiroVent Superior S250

The SpiroVent Superior S250 has been designed for light commercial applications, in other words, for small-volume systems. Adding this product expands the degassing family, so that we can accommodate the growing demand from new systems which operate at lower temperatures. As the SpiroVent Superior family becomes increasingly comprehensive, our customers do not need to compromise in selecting the perfect solution for the systems they encounter.

Some advantages of the new Superior S250:

Smooth & silent (only 41 dB(A) degassing operation
Low defect rate & replacement costs
Low service & maintenance necessary
High degassing performance

Do you want to know more?

SpiroVent Superior S250

The SpiroVent Superior S250 has been designed for light commercial applications so small-volume systems. Working pressure is between 0.5 - 2.5 bar and a system volume of max. 5 m³

SpiroVent Superior S400

A fully automatic vacuum degasser for closed heating, cooling and process systems with a pressure between 1 and 4 bar and system volume up to 100 m³

SpiroVent Superior S600

A fully automatic vacuum degasser for closed heating, cooling and process systems with a pressure between 2.5 and 6 bar and system volume up to 325 m³

SpiroVent Superior S10

A fully automatic vacuum degasser for closed heating, cooling and process systems with a pressure between 5 and 10 bar and system volume up to 300 m³

SpiroVent Superior S16

A fully automatic vacuum degasser for closed heating, cooling and process systems with a pressure between 9 and 16 bar and system volume up to 300 m³

Manuals of our SpiroVent Superior models

SpiroVent Superior S250 SpiroVent Superior S10 SpiroVent Superior S16

Manuals for the SpiroVent Superior S400 and S600

Please check the article number on the side of the control unit to select the right manual.

Spirovent Superior S400:

Article number 61.439: Wifi is optional, using a dongle
Article number 75.144: Wifi is build-in

SpiroVent Superior S400 (61.439) SpiroVent Superior S400 (75.144)

Spirovent Superior S600:

Article number 60.246: Wifi is optional, using a dongle
Article number 75.145: Wifi is build-in

SpiroVent Superior S600 (60.246) SpiroVent Superior S600 (75.145)

Manuals for models, which are nog longer available:

SpiroVent Superior S4 SpiroVent Superior S6

Product Data Sheets of the SpiroVent Superiors

A = Degasser only | B = incl. Break tank | R = incl. Direct refill | I = incl. Insulation

NEW: SpiroVent Superior S250

Type	S250
Article	MV02A50
