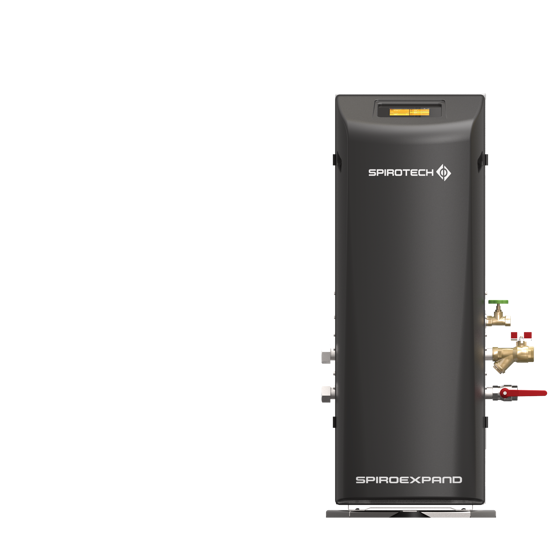

SpiroExpand MultiControl COOL MAXI
The MultiControl COOL MAXI is an automatic expansion and pressure-maintaining device, with 2 pumps (2x 100%) and 1 overflow valve, designed for cooling systems. A separate storage tank is required.
The properties of the MultiControl COOL MAXI
- 2 pumps (2x 100%)
- 1 overflow valve (1x 100%)
- Operational pressure range up to 4,0 or 5,6 bar
- An unpressurized expansion vessel is required
- Maximum expansion volume: 125 – 500 liters
- The minimum temperature at the point of connection: -10°C
- The maximum temperature at the point of connection: 70°C (over 70°C possible with auxiliary tank)
- Maximum operating pressure (PN): 10 bar
