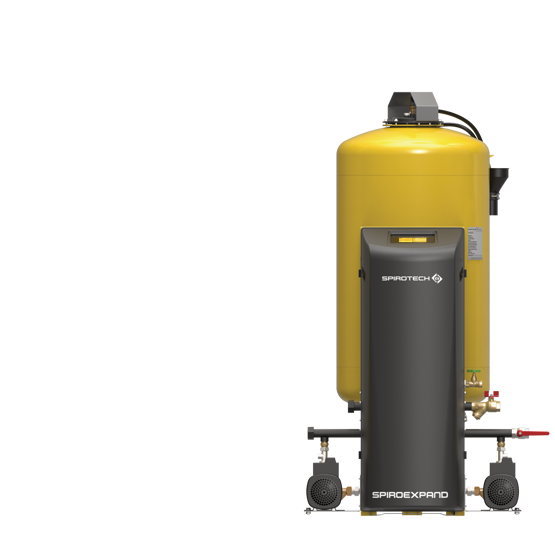

SpiroExpand MultiControl Kompakt DUO Twin

The MultiControl Kompakt DUO Twin is an automatic expansion and pressure-maintaining device. The unit contains 2 pumps (2x 50%) and 2 overflow valves. An unpressurised expansion tank is integrated.

The properties of the MultiControl Kompakt DUO Twin:

  • 2 pumps (2x 50%)
  • 2 overflow valves (2x 100%)
  • Comes with 6 possible vessel volumes: 45, 75, 125, 200, 300 or 500 liters
  • Two further unpressurized expansion vessels can be added
  • Operational pressure range up to 8.1 bar
  • Maximum expansion volume: 45 – 1,500 liters
  • The maximum temperature at the point of connection: 70°C (over 70°C possible with auxiliary tank)
  • Maximum safety temperature in the system: 110°C
  • Maximum operating pressure (PN): 10 bar

Product variants

Choose the desired variant below for all (technical) product data!

Article number EMCK-D125-4.0-twin
Product type EMCK Duo 125L max 4bar Twin
