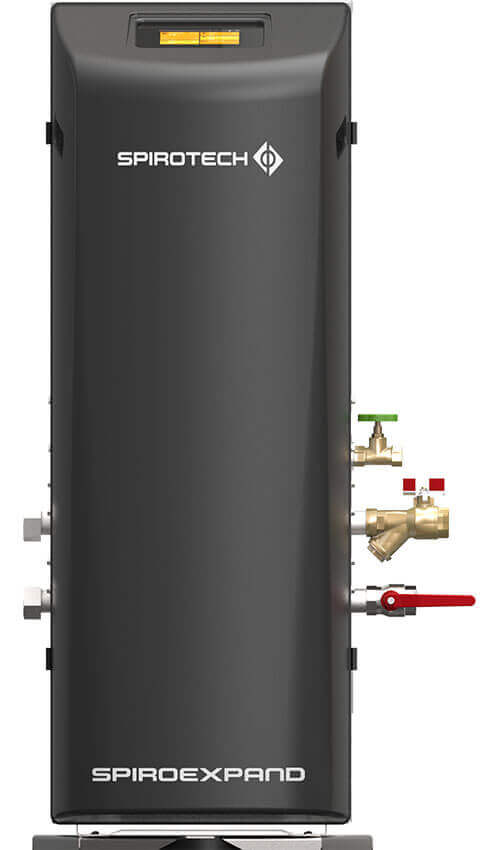

SpiroExpand MultiControl Cool (EMCC)

The SpiroExpand MultiControl Cool series is an expansion and pressure maintenance unit designed for cooling systems.

To develop a product specifically designed to meet the requirements of these systems, the following physical aspects must be taken into account:

  • Temperature differences within the system
  • Temperature fluctuations at the installation site
  • Condensation

The SpiroExpand MultiControl Cool systems are available with three different pump systems:

  1. Solo: Single pump system, pump and overflow valve designed for 100% of the expansion volume flow.
  2. Duo: Double pumping system, pumps convey in parallel, allowing a greater expansion volume flow to be achieved. The overflow valve is designed for this volume flow.
  3. Maxi: double pump system, pump(s) and overflow valve designed for 100% of the expansion volume flow. The 2nd pump serves as a back-up (fail-safe).

All SpiroExpand MultiControl Cool systems are available with a usable upper pressure of 4.0 or 5.6 bar.

For example: the EMCC-D1-5.6 is a MultiControl Cool with DUO double pump system and an upper working pressure of 5.6 bar.

Benefits of the SpiroExpand MultiControl Cool MCC

  • Tanks made of corrosion-resistant, stainless steel (prepared from the factory for thermal insulation on site)
  • Highly elastic and diffusion-resistant membranes
  • Corrosion-resistant drip trays for controlled condensate collection (available as an ideal accessory)
  • Pre-assembled control unit with thermal separation between compact hydraulics and control electronics for the upper part
  • Standard pressure step degassing*
  • Low-noise pump for pressure maintenance
The SpiroExpand MultiControl Cool MCC for air conditioning and refrigeration systems

Our range of SpiroExpand MultiControl Cool expansion units

Touchscreen software update

Software updates should only be performed by our factory customer service or by trained service partners who are familiar with the devices and are aware of potential hazards and risks caused by software updates. In the event of non-conformity and direct or consequential damage, any warranty or warranty claim is excluded.

Note: During the implementation of the software update, the operation of the device is not guaranteed!

Download update   Request service

* Optimal degassing with a vacuum degasser or microbubble deaerator

Taking into account the VDI4708 and VDI2035 guidelines, Spirotech recommends the use of a separate microbubble deaerator or vacuum degasser to ensure optimal degassing of heating and cooling systems.
