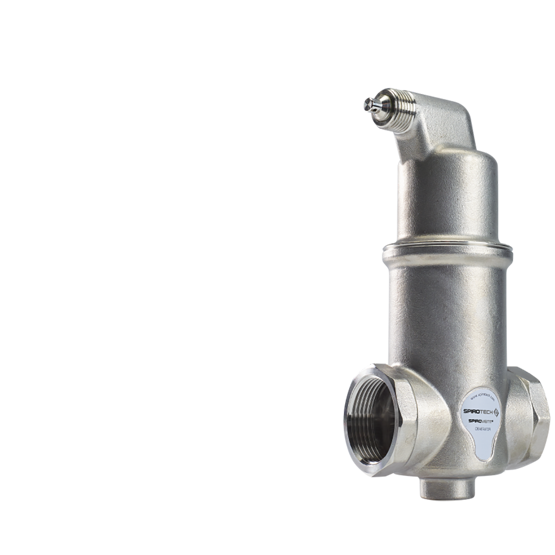

SpiroVent -St.Steel -Hor -HighT

A stainless steel (microbubble) deaerator for high-temperature systems (max. 180 °C) with a horizontal 1¼" connection.

Max 180.0°C

The benefits of the AA/R002 & AA/R007 SpiroVent Deaerators

  • Removes all circulating air and microbubbles effectively
  • Applicable for high temperature system configurations
  • Removes trapped air when installed at the correct location
  • Greatly reduces the need for manual venting
  • Constant low-pressure drop
  • No unnecessary shutdown
  • Connection diameter 1¼" (G1¼)
  • Exceptional guarantee

Product variants

Connection

Article number AA125/R002

The positioning of a SpiroVent air deaerator in the system

SpiroVent Air deaerators are preferably positioned at the hottest point of the installation, the point where the water leaves the heater or where the water enters the cooler.
