SpiroVent -Brass -Hor

10 Bar
Max 110°C

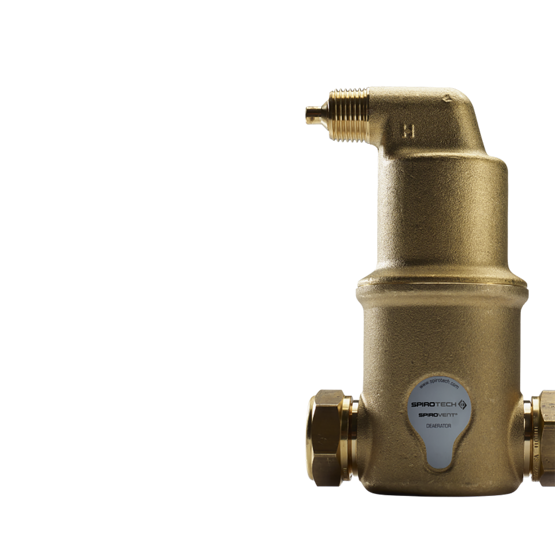

A brass (microbubble) deaerator with a 22 mm - 2" horizontal connection

The benefits of the AA SpiroVent Deaerators

  • Removes all circulating air and microbubbles effectively
  • Applicable with 50/50 Glycol / Water (Volume)
  • Removes trapped air when installed at the correct location
  • Greatly reduces the need for manual venting
  • Constant low-pressure drop
  • No unnecessary shutdown
  • Connection diameters from 22 mm to 2" (G2)
  • Exceptional guarantee

Variation specifications

CONNECTION

ETIM Specifications

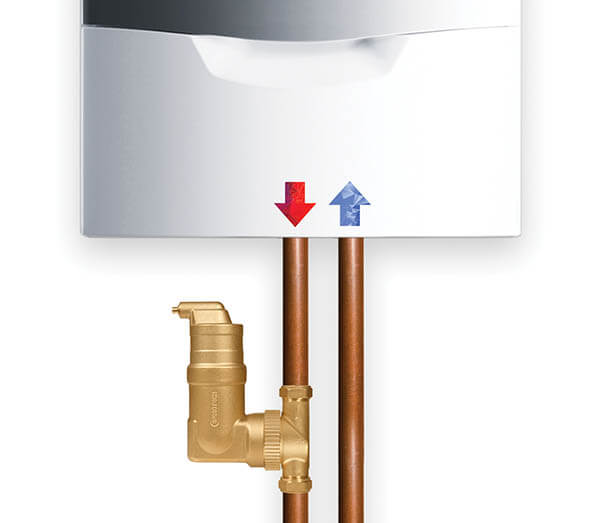

The positioning of a SpiroVent air deaerator in the system

SpiroVent Air deaerators are preferably positioned at the hottest point of the installation, the point where the water leaves the heater or where the water enters the cooler.
