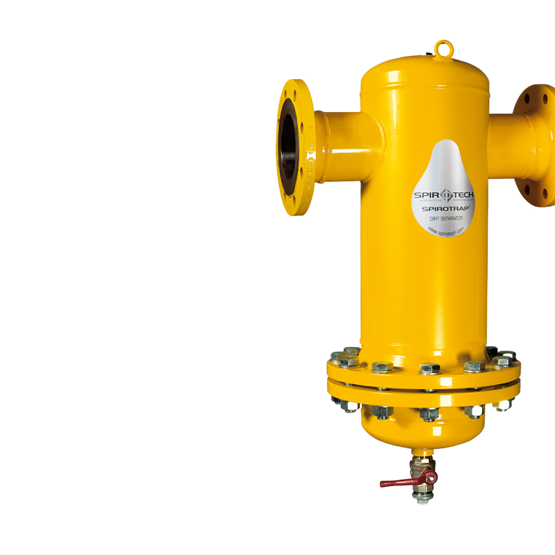

SpiroTrap -Steel -F(PN16) -HiFLow -Demount

10 bar
Max 110°C
Hi-Flow

A demountable steel dirt separator for high flow rate (3 m/s) with a DN50 - DN300 PN16 flange connection

The benefits of the HF-F SpiroTrap dirt separators

  • Applicable for high flow rate systems (3 m/s)
  • Applicable with 50/50 Ethylene Glycol / Water (Volume)
  • Very small particles, from 5 μm (= 0.005 mm) are separated and removed
  • Dirt can be drained while the system is in operation
  • We recommend equipping the separator with shut-off valves on both sides
  • In case of severe pollution and/or maintenance, the unit is demountable
  • Constant low pressure drop
  • Maintenance only takes a few seconds and is not a dirty job compared to a filter solution
  • No unnecessary downtime
  • PN16 flange connections
  • Connection diameters from DN50 - DN300, larger connection diameters on request

Variation specifications

CONNECTION

ETIM Specifications

The positioning of a dirt separator in your system

Dirt separators are preferably positioned just before the systemwater enters the heating or cooling unit (return) in your system, capturing all of the dirt before it gets into the components.

Positioning of Spirotech SpiroTrap
