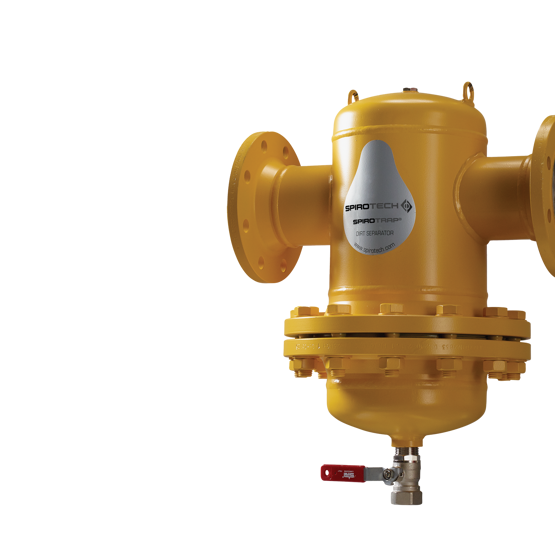

SpiroTrap -Steel -F(PN16) -Demount

A demountable steel dirt separator for standard flow rate (1.5 m/s) with a DN50 - DN300 PN16 flange connection

Demountable

The benefits of the BF-F SpiroTrap dirt separators

  • Very small particles, from 5 μm (= 0.005 mm) are separated and removed
  • Dirt can be drained while the system is in operation
  • Applicable with 50/50 Ethylene Glycol / Water (Volume)
  • We recommend equipping the separator with shut-off valves on both sides
  • In case of severe polution and/or maintenance, the unit is demountable
  • Constant low pressure drop
  • Maintenance only takes a few seconds
  • No unnecessary downtime
  • PN16 flange connections
  • Connection diameters from DN50 - DN300, larger connection diameters on request

Product variants

Select the desired connection below and get all (technical) product data!

Article number BF050F
Product type SpiroTrap -DN50 -Flange -Demount

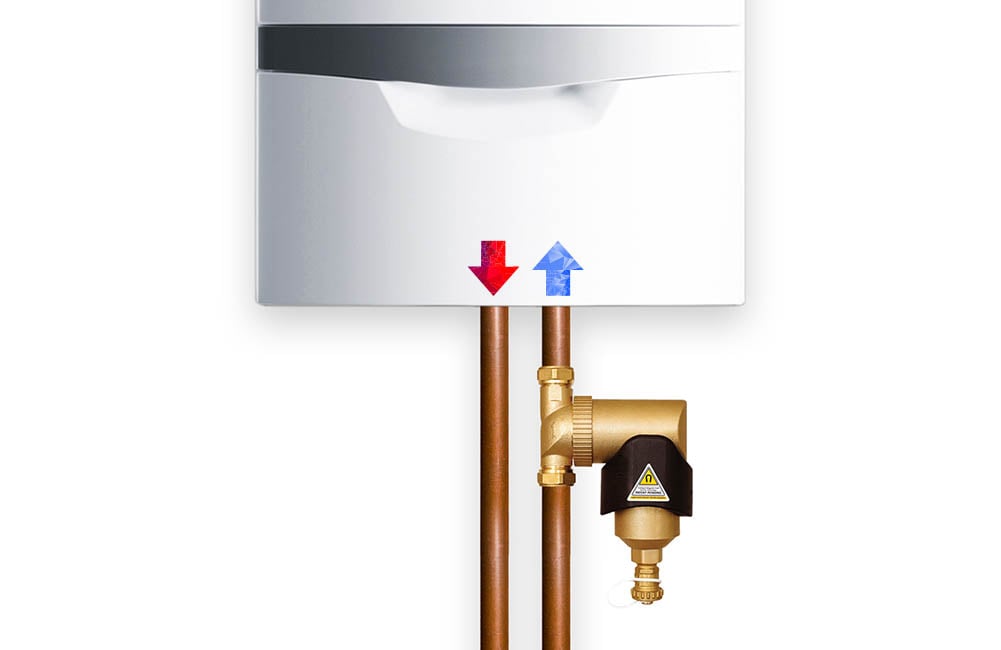

The optimal position of a SpiroTrap dirt separator

To optimally protect your heating or cooling system, the correct placement of a dirt separator is essential. A dirt separator is preferably installed at the point where the system water enters the heating or cooling unit, usually in the return line.

Why on the return line?

  • Here, the water flows back to the (sensitive) system components, such as pumps, heat exchangers and valves.
  • Trapping debris at this point will prevent it from causing damage to these crucial parts.
  • This not only improves the performance and lifespan of your system, but also reduces the risk of breakdowns and maintenance costs.

With a strategically placed dirt separator from Spirotech, your system stays clean, efficient and protected from contamination, even under the most demanding conditions. This way you ensure a problem-free and durable system.

Positioning the dirt separator in your system
